High Quality Sliding Patio Door Handles

Universal Handle Set to suit both left hand and right hand doors

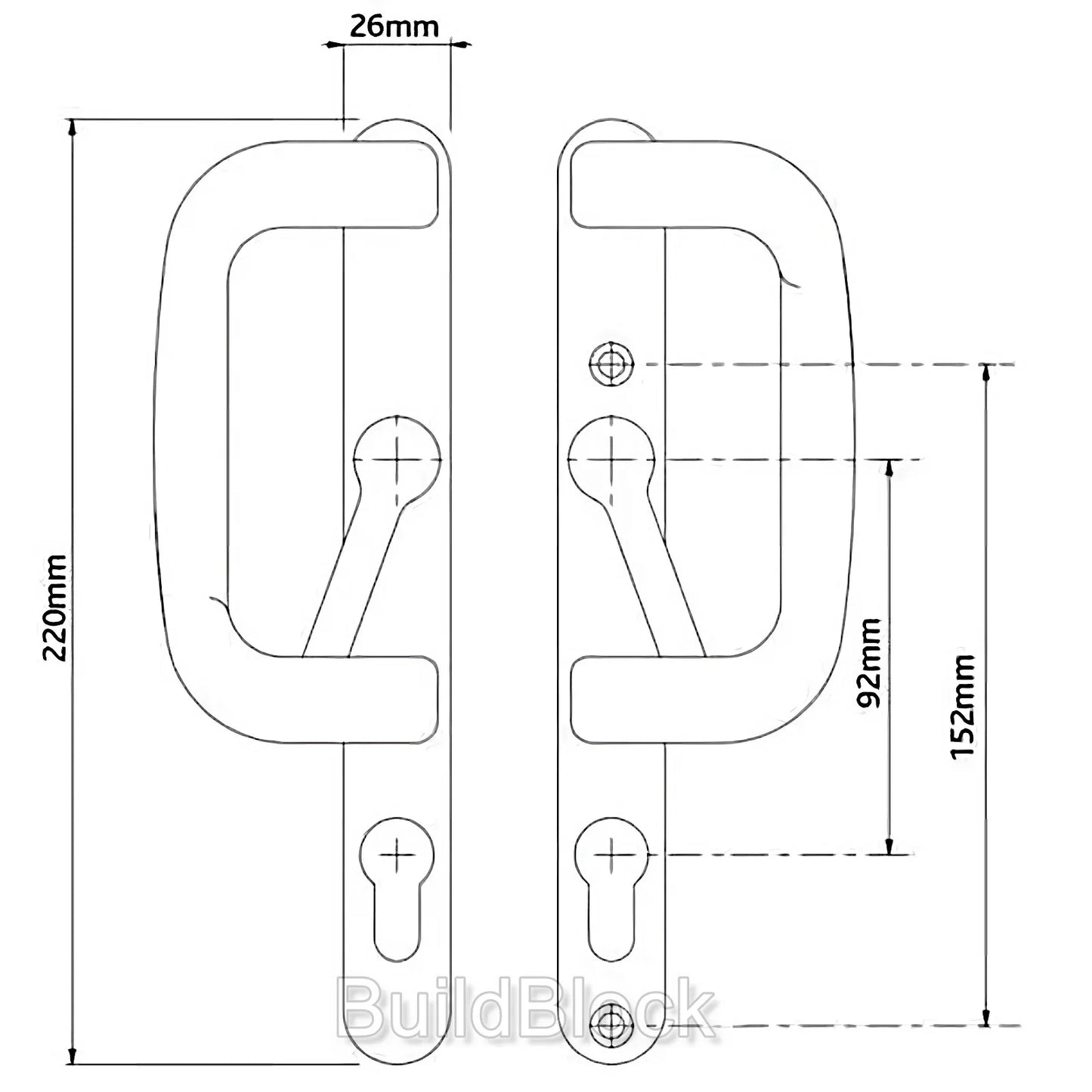

Distance from center to centre of fixing holes is 152mm

You may need to make new screw holes if the lock allows or elongate existing ones.

The distance from the centre of the handle spindle to the centre of the barrel measures 92mm known as 92PZ.

The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference.

Features

Stylish and robust door handle

Available in 220mm long backplate and is PZ92

M6 fixings with reinforced bosses for extra security

Screw and spindle pack suitable for 47 - 60mm door thickness

Supplied with screws and spindle

Screw heads are colour matched to handle.

Universal Handle Set to suit both left hand and right hand doors

Performance Tested to 100,000 cycles

Lever and Backplate Assembly: Zinc Alloy to BS EN 12844

Corrosion Resistance BS EN 1670 Grade 4 - 240 NSS

BS EN ISO 9001/2015 Quality Management System

Set includes Interior Handle, Exterior Handle, 2 screws and 1 spindle

Please check all measurements and suitability before ordering.

Exact product colour displayed may vary depending

on setup and quality of the device used to view.
